How to Use AutoMapper in MVVM Pattern ASP.NET Core?

Writing code for a practical real-world setting presents a number of challenges in terms of refactoring our code for clarity and identifying errors. Our primary goal is to save development time and maintenance costs by focusing on reusability and moving as much code as feasible to a common mechanism.

There are several libraries available in ASP.Net Core that are quite helpful for developing strategies. You may write more reusable and effective code by cutting down on the number of code lines by utilizing the MVVM paradigm with AutoMapper.

What is MVVM pattern?

Whatever platform or language you create for, design patterns are really helpful. Model, View, and ViewModel is MVVM. To get optimum code coverage in a test-driven development process, you can employ MVVM patterns.

• Model: Model holds the data and its related logic.
• View: It is used for the UI component that handles the user interaction.
• View Model: It is used to link Model and View. ViewModel is presenting the function, commands and methods to support the state of view.

Why is it important?

• Any application will be in the similar position as to where the end-user left it.
• Life Cycle state of the application will be preserved.
• UI Components and database operations would be kept away from Business Logic.
• Effortless to understand and read.

What is Automapper?

One tool that aids in creating a mapping between source and destination model types is called Automapper. The source model object may be easily transformed to a destination model object with less jumbled code after the mapping has been established.

Using auto mapper, an object to object mapper, we may map every property in a class to a corresponding property in another class. Writing code that translates one object type to another is a complex problem that most developers deal with on a daily basis. This is why Automapper was created. As seen later in the following code, developers can get rid of the simple conversions.

• Automapper should notably minimize the amount of code you have written, differentiated from LINQ as it uses protocols to regulate default mappings. Using LINQ, these default mappings would have to be outlined.
• In LINQ, it will be mandatory to define mappings in both the directions.
• Automapper should be capable of working this out impulsively when conventions are used.

Key Challenges

Reducing the amount of coding and improving the flexibility of code is one of the major difficulties facing engineers. In the past, we had to manually map the attributes between tables. It’s OK to manually map properties to other tables when there aren’t many properties.

However, suppose there are a lot of attributes. In such case, mapping all the properties by hand would be extremely difficult since we would forget some, which would lead to an error. We won’t be able to maintain the code’s reusability when it gets too long.

Why is Automapper important?

Imagine if there are one or two lines of code to map the properties of tables to another table. Then it will be simple to map big numbers of properties to another table. Therefore, we can achieve that with the help of Automapper in ASP.NET Core.

Use case

Let’s assume a simple example without using an Automapper.

We have a set of users in our local table and also in azure ad B2C which contains the same type of information or users. we need to convert azure B2C user object to application user object.

Without using Automapper

namespace AutomapperMvvmExample.Controllers
{
public class ApplicationUserController: Controller
{
private Context dbContext = new Context ();

ApplicationUser users = new ApplicationUser();

[HttpGet]
public ActionResult InsertById()
{
return View ();
}
[HttpPost]
public ActionResult InsertById(int id)
{
var userlist = dbContext.activeDirectoryUsers.Where(x => x.ObjectId == id).FirstOrDefault();

if (userlist! = null)
{
dbContext.applicationUsers.Add(new ApplicationUser
{
FirstName = userlist.FirstName,
LastName = userlist.LastName,
Email = userlist.Email,
DisplayName = userlist.DisplayName,
StreetAddress = userlist.StreetAddress
});
}
dbContext.SaveChanges();
return View ();
}
}
}

In the InsertById method, you can see there is the manual mapping of property to another table. This is the few properties but assumes that there is the 8 – 10 property and we have to map manually then it’s a very lengthy process. Hence, a new concept introduced called Automapper.

Let’s create the example with the help of Automapper.

We will be going to use a code-first approach and you can also use the DB.

Step 1: Create two models

Create the two models ActiveDirectoryUser and ApplicationUser for mapping the property of ActiveDirectoryUser to ApplicationUser.

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Web;

namespace AutomapperMvvmExample.Models
{
public class ApplicationUser
{
[Key]
public int ObjectId { get; set; }
public string FirstName { get; set; }
public string LastName { get; set; }
public string Email { get; set; }
public string DisplayName { get; set; }
public string StreetAddress { get; set; }
}
}
We have created the model named ApplicationUser with properties ObjectId, First_name, Last_name, Email, DisplayName, StreetAddress where ObjectId is the primary key.
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Web;
namespace AutomapperMvvmExample.Models
{
public class ActiveDirectoryUser
{
[Key]
public int ObjectId { get; set; }
public string FirstName { get; set; }
public string LastName { get; set; }
public string Email { get; set; }
public string DisplayName { get; set; }
public string StreetAddress { get; set; }
}
}

The second model is ActiveDirectoryUser with properties ObjectId, First_name, Last_name, Email, DisplayName, StreetAddress where ObjectId is the primary key. We will map the property of the ActiveDirectoryUser model into the ApplicationUser model with the help of Auto mapper.

Step 2: Add model to context file

The context file will look like this. Add two models into the context as shown below. After migration it will generate the table in the database as the model name.

namespace AutomapperMvvmExample.Models
{
public class Context : DbContext
{
public Context() : base("Context")
{

}
public DbSet activeDirectoryUsers { get; set; }
public DbSet applicationUsers { get; set; }
}
}

Step 3: Add controller

First controller to fill the ActiveDirectoryUser table in the database. In which we have to define the Index method for get and post as shown below:

using AutomapperMvvmExample.Models;

namespace AutomapperMvvmExample.Controllers
{
public class ActiveDirectoryUserController: Controller
{
private Context _context = new Context ();
ActiveDirectoryUserController user = new ActiveDirectoryUserController();

[HttpGet]
public ActionResult Insert ()
{
return View ();
}
[HttpPost]
public ActionResult Insert (ActiveDirectoryUser user)
{
if (ModelState.IsValid)
{
_context.activeDirectoryUsers.Add(user);
_context.SaveChanges();
}
return View ();
}
}
}

• It is a basic form to add values to the model. Define the context instance and values using add method as shown. After that save the context using the () method.
• Second contSaveChanges roller is to add values in the ApplicationUser table with the help of Automapper.
• First of all, install the Auto mapper from the nuget package.

using AutomapperMvvmExample.Models;
using AutoMapper;

namespace AutomapperMvvmExample.Controllers
{
public class ApplicationUserController : Controller
{
private Context dbContext = new Context();
ApplicationUser users = new ApplicationUser();

[HttpGet]
public ActionResult Index()
{
if (dbContext.applicationUsers.Any())
{
return View(dbContext.applicationUsers.ToList());
}
return View();
}

[HttpGet]
public ActionResult Insert()
{
var userlist = dbContext.activeDirectoryUsers.ToList();

var config = new MapperConfiguration(cfg => {
cfg.CreateMap<ActiveDirectoryUser, ApplicationUser>();
});

IMapper mapper = config.CreateMapper();

if (userlist != null)
{
var newuser = mapper.Map<List,List>(userlist);
foreach(var item in newuser)
{
var foundUser = dbContext.applicationUsers.Any(x=> x.Email == item.Email);
if (foundUser == false)
{
dbContext.applicationUsers.Add(item);
}
else
{
ViewData["message"] = "Some Data Already Exist";
}
}
}
dbContext.SaveChanges();
return View("Index",dbContext.applicationUsers.ToList());
}
}
}

Version 10.1.1 of Automapper was utilized in this instance. Thus, the table has been mapped using the mapper setup.

To map the table, we simply needed to write two lines in the previous version; however, this is deprecated in the most recent version. Call CreateMap(), where T1 is the source object and T2 is the destination entity, to build the default mapping. Thus, we are now mapping the properties of the ActiveDirectoryUser table to the properties of the ApplicationUser table. We don’t need to put in any additional effort because automapper does these tasks flawlessly.

In the Index view, I’ve created the button Add so when we click on that button then Insert method will be called. And in the Insert method it will take the list of the data of the ActiveDirectoryUser table and place it in the user list variable. After that we have used that user list in the “mapper.map” where it will store the value from the ActiveDirectoryUser to the ApplicationUser.

Now make a view of the method and run the application.

Output:

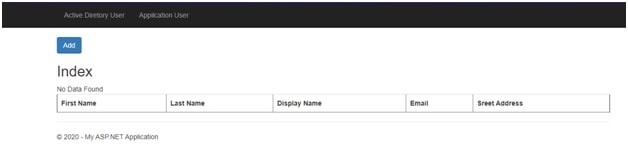

Figure 1.0: ActiveDirectoryUser List

Figure 1.1 Insert into ActiveDirectoryUser

This is a simple insert method to fill the ActiveDirectoryUser table. After added the data the data list will be look like as:

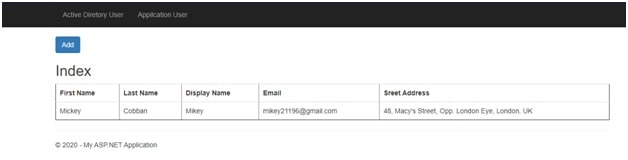

Figure 1.2 ActiveDirectoryUser Table after adding data

Add this filled value into the ApplicationUser table as shown below snap.

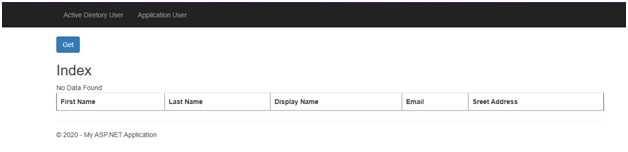

Figure 2.0 ApplicationUser List

We can see here that there is a Get button, when we click on that then data from ActiveDirectoryUser table will be added to the Applicationuser table. And that ApplicationUser table data list looks like:

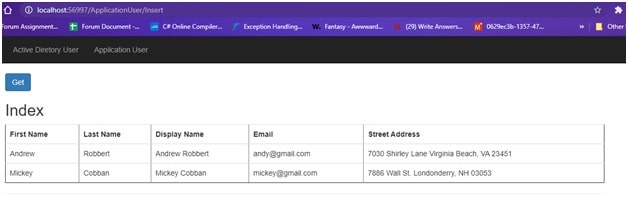

Figure 2.1 ApplicationUser Table after adding data

In map function, T, make sure that the first position is the source table from which we want to take the value and second position is for the destination table in which we want to map the value from the source table.

Create the View Model

A view model illustrates the data that you desire to display on your view/page, whether it be used for input values or static texts that can be adjoined to the database.

We have created the view model to add the data into the ActiveDirectoryUser table from the view model.

Step 1: Create a view model class

Create the view model as our above table properties. So we can create the view of this view model and after that we will store the value of the view model to ActiveDirectoryUser table using Automapper.

namespace AutomapperMvvmExample.ViewModel
{
public class ActiveDirectoryUserViewModel
{
[Key]
public int ObjectId { get; set; }
public string FirstName { get; set; }
public string LastName { get; set; }
public string Email { get; set; }
public string DisplayName { get; set; }
public string StreetAddress { get; set; }
}
}

We have taken the properties as same as ActiveDirectoryUser table and a primary key ObjectId.

Step 2: Create the controller

I have used the same controller but you can create another controller and insert the value that comes from the view model from the browser in the ActiveDirectoryUser table as shown below.

using AutoMapper;
using AutomapperMvvmExample.Models;
using AutomapperMvvmExample.ViewModel;

namespace AutomapperMvvmExample.Controllers
{
public class ActiveDirectoryUserController : Controller
{
private Context _context = new Context();
ActiveDirectoryUser user = new ActiveDirectoryUser();
public ActionResult Index()
{
if (_context.activeDirectoryUsers.Any())
{
return View(_context.activeDirectoryUsers.ToList());
}
return View();
}

[HttpGet]
public ActionResult Insert()
{
return View();
}
[HttpPost]
public ActionResult Insert(ActiveDirectoryUserViewModel user)
{
var config = new MapperConfiguration(cfg => {
cfg.CreateMap<ActiveDirectoryUserViewModel, ActiveDirectoryUser>();
});

IMapper mapper = config.CreateMapper();

if (user != null)
{
var newuser = mapper.Map<ActiveDirectoryUserViewModel, ActiveDirectoryUser>(user);

var foundUser = _context.activeDirectoryUsers.Any(x => x.Email == user.Email);
if (foundUser == false)
{
_context.activeDirectoryUsers.Add(newuser);
}
else
{
ViewData["message"] = "Data Already Exist";
}
_context.SaveChanges();
}
return View("Index",_context.activeDirectoryUsers.ToList());
}
}
}

Output:

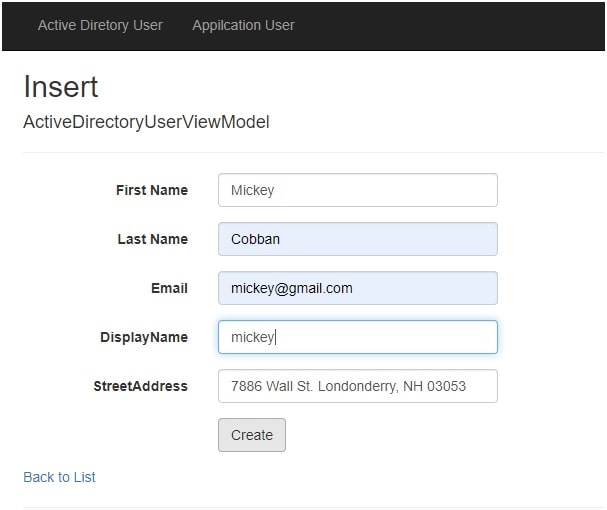

Figure 3.0 Insert from View model to ActiveDirectoryUser

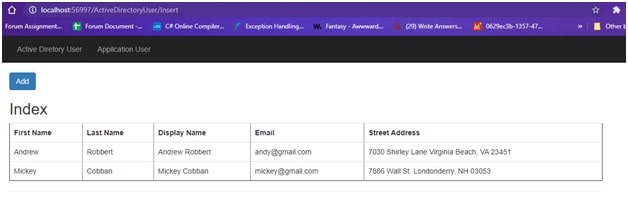

Figure 3.1 After inserting into ActiveDirectoryUser table

Using ForMember() Method:

• The auto mapper also contains the two main and useful methods named ForMember() and Ignore().
• Suppose we have two properties: First name and Last name and in view model there is the Full name property. We can use the ForMember() method for mapping these two properties into one property.
• If we have extra properties in the view model then use the ignore method.

Our two model ActiveDirectoryUser, and ApplicationUser will be same. We have to just change the view model and controller. Let’s see the code.

Step 1:- Change ActiveDirectoryUser Controller

In the Index method of ActiveDirectoryUser controller, just change the mapper configuration as follows.

var config = new MapperConfiguration(cfg => {
cfg.CreateMap<ActiveDirectoryUserViewModel, ActiveDirectoryUser>().ForMember(y => y.DisplayName, map => map.MapFrom(x => x.FirstName + " " + x.LastName)); ;
});

MapFrom() method is used to combine the two properties. Here we have combined the FirstName and LastName property to DisplayName property.

Now let’s see the ignore() method.

Step 2:- Change ApplicationUser Controller

In the Insert method of the ApplicationUser controller, change the mapper configuration as below.

var config = new MapperConfiguration(cfg => {
cfg.CreateMap<ActiveDirectoryUser, ApplicationUser>().ForMember(z => z.ObjectId, options => options.Ignore());
});

Ignore() method ignores the property that we don’t want to add to the mapper table.

Step 3:- Change the ViewModels

In both view model, we do not add the DisplayName property. Change both view model as below.

public class ApplicationUserViewModel
{
[Key]
public int ObjectId { get; set; }
[DisplayName("First Name")]
public string FirstName { get; set; }
[DisplayName("Last Name")]
public string LastName { get; set; }
public string Email { get; set; }
public string StreetAddress { get; set; }
}

Output:-

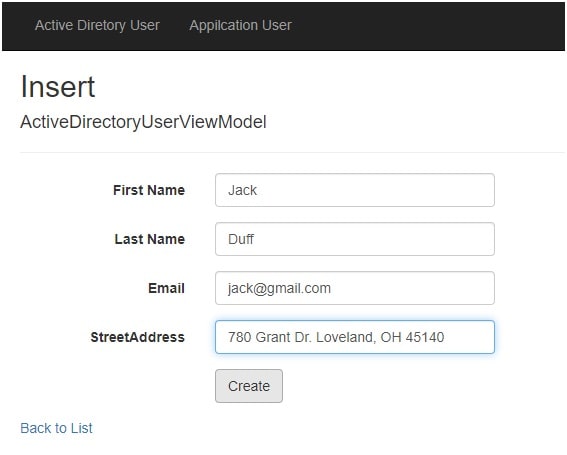

Figure 4.0 Insert into ActiveDirectoryUser

Figure 4.1 ActiveDirectoryUser table

Figure 4.2 ApplicationUser table

As we can see here DisplayName property appears with the full name which is a combination of two properties FirstName and LastName.

Conclusion

We have studied about the view model using the auto mapper in this blog. This makes it easier to develop, comprehend, and maintain our code. Code will be reduced and made more stable, extensible, and maintainable with the help of Auto Mapper. Once you have a firm grasp of the code, attempt creating the other two methods, Edit and Delete.

This was an example demonstration, and it would be very beneficial to you in learning the best practices and patterns for writing code for your new web application.

I hope you have a clear idea of how to use Automapper to implement model mapping.
