Restore an MS SQL Server Database from a Backup File

What is a .bak file?

MS SQL Server is a database program from Microsoft. A database is a store for an app's information. A .bak file is a saved copy of a database. Restoring means loading that copy back into the server, like putting a photo album back on the shelf.

Warning: restoring over an existing database replaces its data. Take a fresh backup of the current database first if it holds anything you want to keep.

Before you start

• Copy the .bak file to the server, in a folder that SQL Server can read. For example, C:\Backups.
• Install SQL Server Management Studio (SSMS), the free tool for managing SQL Server, if you do not have it.
• Use a login with admin rights.

Steps with the graphical tool

1. Open SSMS and connect to your server.

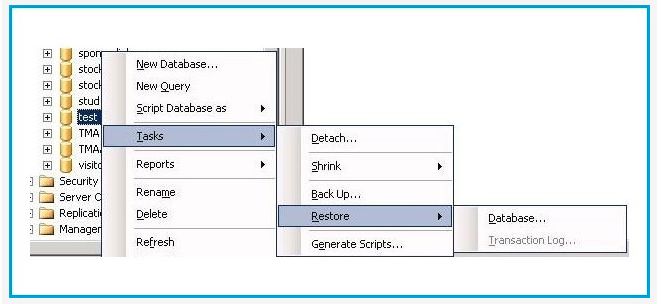

2. In Object Explorer on the left, right-click Databases.
3. Click Restore Database.

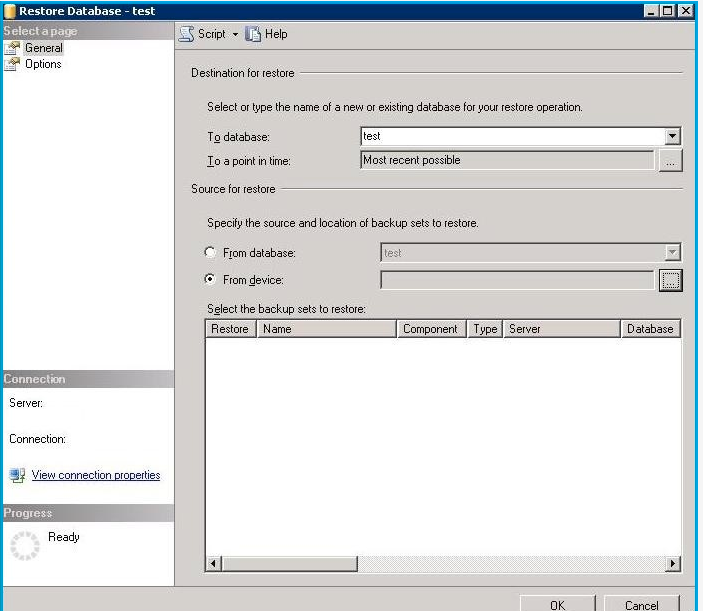

4. Choose Device as the source.

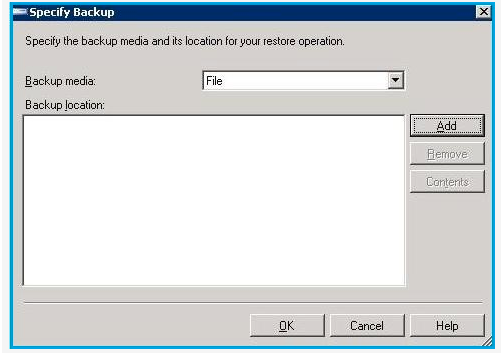

5. Click the three dots (...) button.

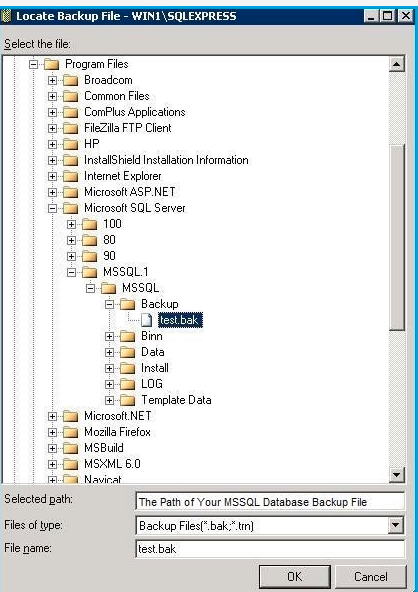

6. Click Add and pick your .bak file. Click OK.



7. In Destination, type the database name. Use a new name to avoid replacing an existing one.
8. Check the box in the Restore column for the backup set.



9. Open the Files page on the left. Check the folder paths for the data and log files. Change them if the folder does not exist on this server.
10. Open the Options page. Tick Overwrite the existing database only if you mean to replace one.
11. Click OK.
12. Wait for the message that the restore finished.

Steps with a query

Open a new query window and run:

RESTORE DATABASE MyShop
FROM DISK = 'C:\Backups\MyShop.bak'
WITH MOVE 'MyShop' TO 'C:\Data\MyShop.mdf',
     MOVE 'MyShop_log' TO 'C:\Data\MyShop_log.ldf',
     REPLACE;

This loads the backup into a database named MyShop. MOVE sets where the files go. REPLACE overwrites an existing database with that name, so use it with care. Use RESTORE FILELISTONLY FROM DISK = '...' to see the correct logical file names.

Common problems

• Operating system error 5, access denied: the SQL Server service account cannot read the folder. Move the file to a folder it can read.
• Database in use: close other connections, or set the database to single-user mode.
• Backup from a newer version: you cannot restore it on an older SQL Server. Install the same or newer version.

Quick recap

• Copy the .bak file to the server.
• Right-click Databases and choose Restore Database.
• Pick the device, check the file paths, and click OK.
• You can also use the RESTORE DATABASE command.
• Back up the current database first.
